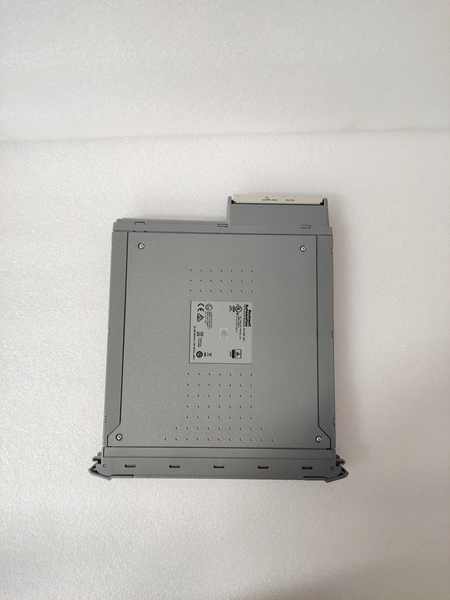

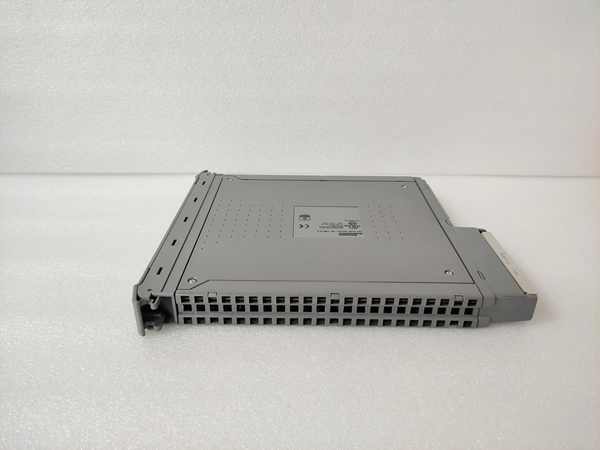

ICS TRIPLEX T8403C是一款专为工业自动化和过程控制系统设计的数字输入模块，以下为其核心产品详情：
一、基础技术参数
输入通道：模块配备40个独立的TMR数字量输入通道，每个通道均采用三重化处理，支持24Vdc数字信号输入，可精准采集现场设备状态。
电气特性：标称输入电压24Vdc，工作范围18-32Vdc，输入电流约2mA/通道，兼容工业现场常见信号源。
防护隔离：模块通过2500V脉冲耐受光电/电气隔离技术，有效阻断现场干扰信号，保障控制系统稳定性。
环境适应性：工作温度范围-40°C至+70°C，防护等级IP65，可适应高温、高湿、强电磁干扰等极端工业环境。
二、核心功能特性
三重冗余架构（TMR）：采用三模冗余设计，每个输入通道配备独立处理单元，通过交叉校验实现故障容错，符合IEC 61508 SIL 3安全等级认证。
实时诊断与自检：模块内置自动诊断功能，可实时监测通道状态、线路开路/短路故障，并通过前面板状态指示灯（通道状态LED、模块健康状态LED）直观反馈运行状态。
高精度事件记录（SOE）：支持1ms分辨率的事件顺序记录功能，精确记录输入信号变化时间，为故障分析提供可靠数据支持。
数字滤波配置：每个通道可独立设置50/60Hz滤波参数，有效抑制现场电磁干扰，提升信号采集精度。
热插拔支持：模块支持在线更换，无需停机即可完成维护，最大限度减少生产中断时间。
三、应用领域与场景
石油天然气行业：用于紧急停车系统（ESD）、火焰和气体探测系统（F&G），确保在超压、泄漏等异常工况下快速触发安全联锁。
化工行业：部署于反应釜安全联锁系统，实时监测温度、压力等关键参数，保障连续生产过程的安全性。
电力行业：集成于电厂安全保护系统，监控发电机组、变压器等设备的运行状态，防止重大事故发生。
交通运输：应用于轨道交通信号控制系统，确保列车运行调度指令的精准传输与执行。
制药行业：满足GMP规范要求，用于洁净车间环境监控与工艺流程管理，保障药品生产质量。
ICS TRIPLEX T8431
ICS TRIPLEX T8403CX
ICS TRIPLEX T8403C is a digital input module designed for industrial automation and process control systems.The following are its core product details:
1.Basic technical parameters
Input channel:The module is equipped with 40 independent TMR digital input channels.Each channel adopts triple processing,supports 24Vdc digital signal input,and can accurately collect the status of field equipment.
Electrical characteristics:Nominal input voltage 24Vdc,working range 18-32Vdc,input current about 2mA/channel,compatible with common signal sources in industrial sites.
Protection isolation:The module uses 2500V pulse tolerance photoelectric/electrical isolation technology to effectively block field interference signals and ensure the stability of the control system.
Environmental adaptability:The operating temperature range is-40°C to+70°C,and the protection level is IP65.It can adapt to extreme industrial environments such as high temperature,high humidity,and strong electromagnetic interference.
2.Core functional characteristics
Triple redundant architecture(TMR):adopts a three-module redundant design,each input channel is equipped with an independent processing unit,and fault tolerance is achieved through cross-checking,which complies with IEC 61508 SIL 3 safety level certification.
Real-time diagnosis and self-test:The module has a built-in automatic diagnosis function,which can monitor the channel status and line open/short circuit faults in real time,and intuitively feedback the operating status through the front panel status indicator(channel status LED,module health status LED).
High-precision event recording(SOE):supports event sequence recording function with 1ms resolution,accurately records the input signal change time,and provides reliable data support for fault analysis.
Digital filter configuration:Each channel can independently set 50/60Hz filter parameters to effectively suppress on-site electromagnetic interference and improve signal acquisition accuracy.
Hot-swap support:The module supports online replacement,maintenance can be completed without downtime,and production interruption time is minimized.
3.Application fields and scenarios
Oil and gas industry:used for emergency shutdown system(ESD)and flame and gas detection system(F&G)to ensure rapid triggering of safety interlocks under abnormal conditions such as overpressure and leakage.
Chemical industry:Deployed in the reactor safety interlock system to monitor key parameters such as temperature and pressure in real time to ensure the safety of the continuous production process.
Power industry:Integrated in the power plant safety protection system to monitor the operating status of equipment such as generator sets and transformers to prevent major accidents.
Transportation:Applied to rail transit signal control systems to ensure the accurate transmission and execution of train operation dispatching instructions.
Pharmaceutical industry:Meet GMP specifications,used for clean workshop environment monitoring and process management to ensure the quality of drug production.
